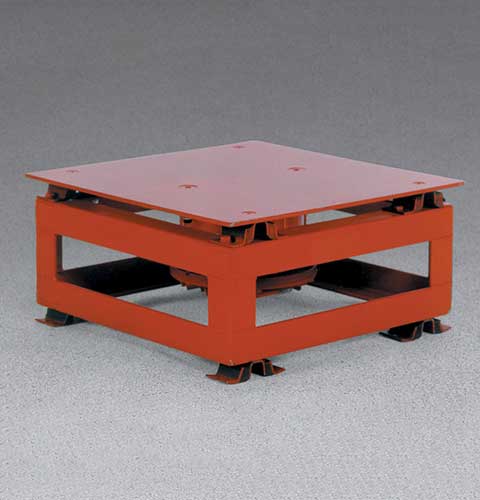

Specification

  • Capacity: Up to 300 lbs (136 kg)
  • Deck: Cushioned steel; 20" w x 20" d (508 x 508 mm)
  • Vibrator: High-speed 3,600 vpm; electromagnetic
  • Control panel: Separate; includes operating switch, fuse, rectifying element and amplitude control dial.
  • Amplitude: Variable from 0 to 1/16” (1.58 mm) linear vibration.
  • Dimensions: 20” w. x 20” d. x 10” h. (508 x 508 x 254 mm).
  • Weight: Net 175 lbs. (79 kg); Shpg. 200 lbs. (91 kg).

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
NA
Control panel included, but not shown
115vAC, 60 Hz, 1ø. 100 Watts.
