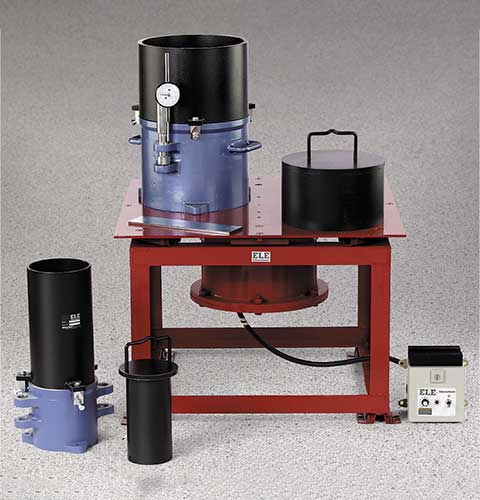

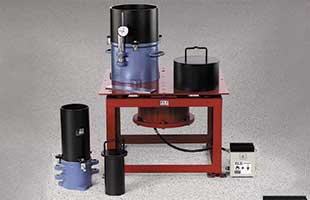

Vibrating Table 50 Hz

24-9112/01

Category:

Soils

Sub Category:

Soil Index Properties, Density

Product Group:

Vibrating Tables

Log in

You must log in to your ELE account to view prices and place your order.

220vAC, 50 Hz, 1ø.

Double Amplitude Range,” 0.002 to 0.019
ASTM D4253 Yes
ASTM D4254 Yes
Description Vibrating Table 50 Hz



Specifications

Table Steel construction; 30” x 30” (762 x 762 mm)
cushioned steel deck.
Actuator Electromagnetic vibrator; semi-noiseless;
over 100 lb. (45 .3 kg) net wt.
Frequency 3,600 vpm; variable amplitude separately
controlled.
Table Capacity 751 lbs. (34 0 kg).
Double Amplitude Range 0.002” to 0.019” (0.05 to 0.48 mm).
Dimensions 30” w. x 30” d. x 21 ” h. (762 x 762 x 533 mm).
Weight Net 555 lbs. (252 kg); Shpg. 605 lbs. (274 kg).
