Vibrating Table 60 Hz

24-9112/06

Category:

Soils

Sub Category:

Soil Index Properties, Density

Product Group:

Vibrating Tables

Log in

You must log in to your ELE account to view prices and place your order.

220vAC, 60 Hz, 1ø.
Double Amplitude Range,” 0.002 to 0.015
ASTM D4253 Yes
ASTM D4254 Yes

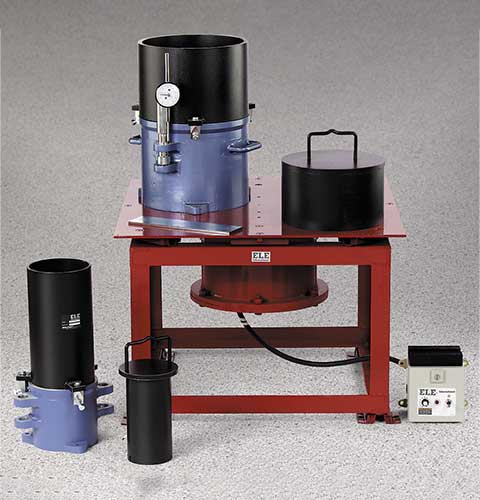

Description Vibrating Table 60 Hz

Specifications

TableSteel construction; 30” x 30” (762 x 762 mm)
cushioned steel deck.
ActuatorElectromagnetic vibrator; semi-noiseless;
over 100 lb. (45 .3 kg) net wt.
Frequency3,600 vpm; variable amplitude separately
controlled.
Table Capacity750 lbs. (34 0 kg).
Double Amplitude Range0.002” to 0.015 ” (0.05 to 0.38 mm).
Dimensions30” w. x 30” d. x 21 ” h. (762 x 762 x 533 mm).
WeightNet 555 lbs. (252 kg); Shpg. 605 lbs. (274 kg).
