• 10,000 lbf. (45 kN) maximum load capacity.
• Accurate loading speeds from 0.08” (2.032 mm) to as low as 0.001” (0.025 mm) per minute.
• Push-button Up-Down-Stop operation with overtravel limit switch protection.
• Highly versatile — can be used for Quick Undrained Triaxial, Unconfined Compression, CBR and Soil Cement testing with proper accessories.

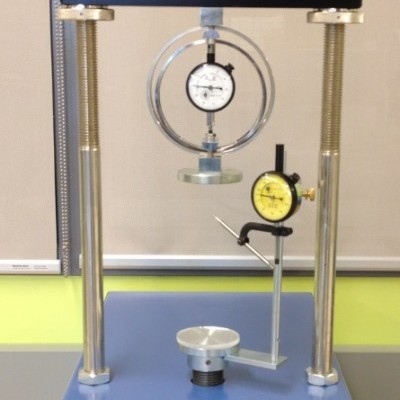

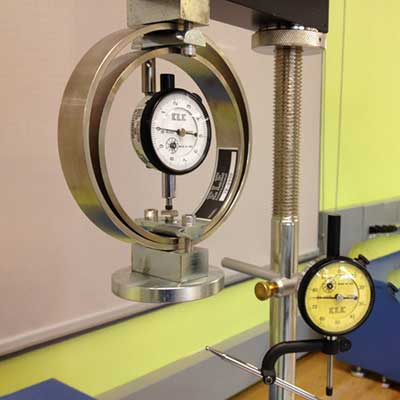

Shown with unconfined compression test digital readout set; not included, order separately

Unconfined Compression Test Digital Readout Set, English 110 vAC

Includes: 2-channel digital readout, 500 lb. capacity S-type load cell, axial strain transducer with 2” range, platens and mounting hardware. info »

Unconfined Compression Assembly Only

Includes: Platens. Proving Ring and Indicator not included, order separately

info »

Unconfined Compression Test Accessory Set, English

Includes: platens, 1.0” range dial indicator and 500 lb. capacity proving ring.

info »

Unconfined Compression Test Accessory Set, Metric

Includes: platens, 25 mm range dial indicator and 2.2 kN capacity proving ring.

info »
