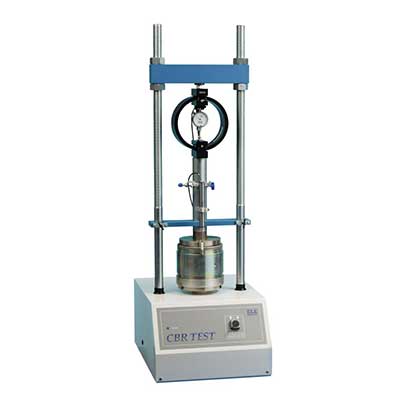

CBR-Test 50 Machine

• Single speed machine (ASTM/AASHTO and BS).
• Rapid Platen Adjustment.
• Complete with penetration piston stabilizer bar.
• Compact, bench-top design.

Designed for performing laboratory CBR tests to ASTM, AASHTO and BS standards, the ELE CBR-Test 50 consists of a twin column frame and a motorized drive system. Single speed is provided: 0.5” (1.27 mm) per minute for ASTM, AASHTO and BS tests.

Digital Proving Ring, 6,000 lbs (28.0 kN)

info »
78-0764

Mechanical Dial Indicator - 25 mm Range Clockwise Movement

info »
88-4110

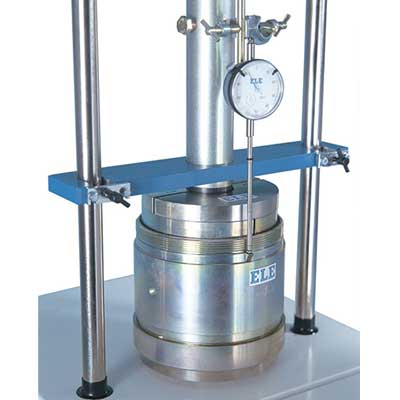

CBR Penetration Piston Assembly

For use on CBR-test.

info »
24-9179

Digital Proving Ring, 11,200 lbs (50.0 kN)

info »
78-0864

CBR-Test 50 Machine 50 kN Capacity BS and ASTM Supplied with Stabilising Bar.

info »
24-9150/02

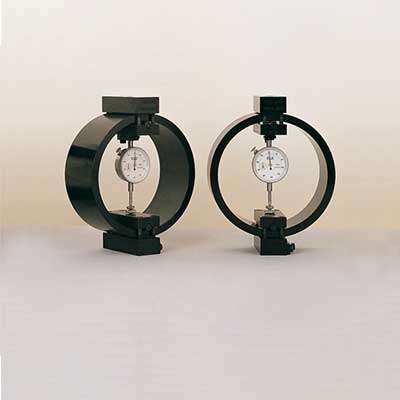

50kN Clamped Boss Load Ring

Calibrated in compression.

info »
78-0860

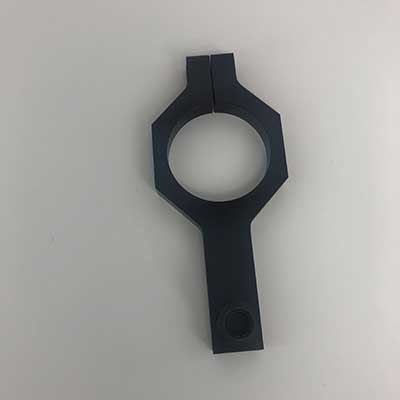

Dial Indicator Holder

info »
88-4194

Clamped Boss Load Ring - 28.0 kN

info »
78-0760

Dial Indicator - 1.0" Range

1.0” x 0.001” divisions.

info »
88-4100
