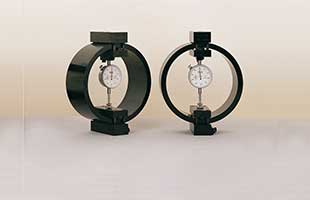

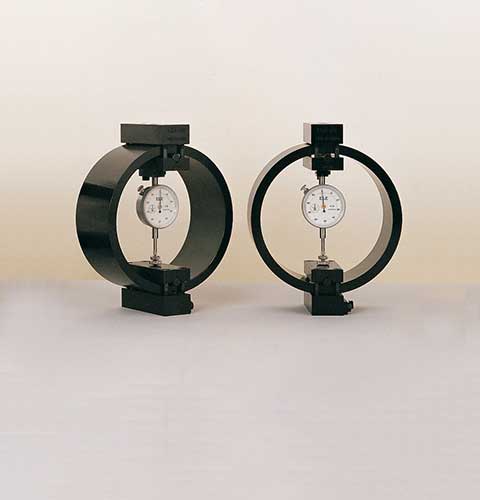

Clamped Boss Load Ring - 3.0 kN

78-0160

Category:

Direct Shear and Vane Tests, Load Measurement, Soils, Laboratory Equipment

Sub Category:

Soil Strength (Triaxial), Triaxial Load Frames, Direct Shear and Vane Tests, Load Measurement, Proving Rings

Product Group:

Digital Tritest 50 Load Frame, Proving Rings, Measurement of Load (Shear Stress), Clamped Boss Load Rings, Direct/Residual Shear Apparatus

Description Load ring - 3 kN
Force Capacity, kN 3
Weight, lbs 9.25
BS 1377 Yes
ASTM D3080 Yes



Specifications

Capacity: kN, kgf, lbf 3.0, 300, 650
Typical Design sensitivity: N/div, kgf/div, lbf/div 2.0, 0.20, 0.43
Overall height mm 248
Approx weight kg 3.3





Specifications

Capacity - lbf 1,000
Capacity - kN 3
Capacity - kgf 300
Typical Design Sensitivity - lbf/div 0.43
Typical Design Sensitivity - kN/div 2
Typical Design Sensitivity - Kgf/div 0.2
Overall Height 9.76” (248 mm)
Approx Weight 7.3 lbs.(3.3 kg)
