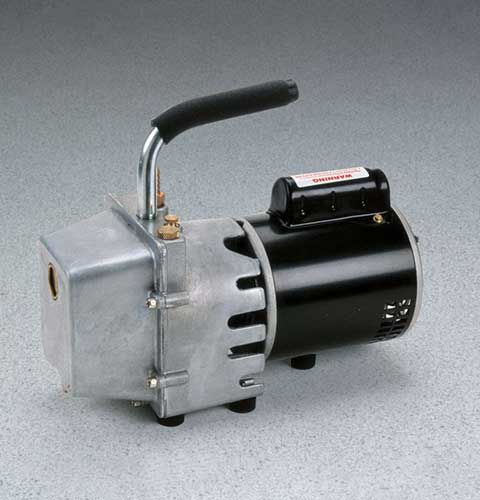

High Vacuum Pump

88-3110/02

Category:

Soils, Laboratory Equipment

Sub Category:

Soil Strength (Triaxial), Pressure Systems, General, Vacuum Pumps

Product Group:

Tri-Flex 2 Master Control Panel, High Vacuum Pump

115vAC, 50/60 Hz, 1ø.

Rated Power 110vAC, 50/60 Hz, 1ø.
Description High Vacuum Pump



Specifications

Free Air Display 85 liters per minute (3 cu. ft. per minute).
Ultimate Vacuum 29.95 inches of mercury.
Motor/Pump 1/3 hp; speed 1725 rpm.
Operating Temperature 30°F to 170°F (0°C to 78°C).
Intake Port 1/4” o.d. for 1/4” tubing.
Dimensions 11 -1/4” h. x 15 -1/2” l. x 6-1/2” w. (29 x 39 x 16 cm).
Weight Net 28 lbs. (12 .7 kg).



Filtering Kit

45-9301

Functions as water trap for vacuum pump.

High Vacuum Grease

88-3115

5.3 oz. (150 g) tube.
