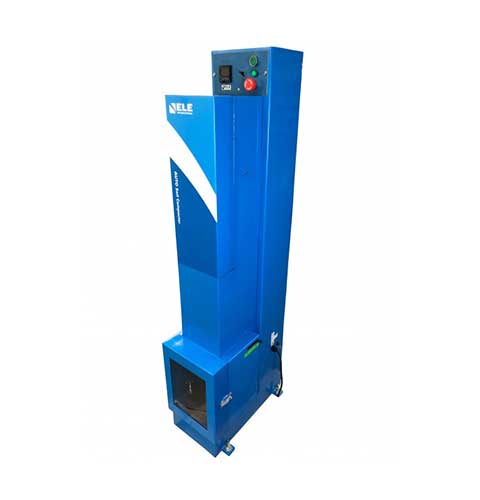

Automatic Soils Compactor with guarding ASTM 110-120V 60Hz 1 ph

« return

Automatic Soils Compactor with guarding ASTM 110-120V 60Hz 1 ph

24-8085/02

Category:

Compaction & CBR Test Equipment, Soils

Sub Category:

Automatic Compaction of Soils, Compaction and CBR, Compaction

Product Group:

Automatic Soil Compactor, ASTM Automatic Compactors

  • With NEW CE Compliant guarding as an extra safety measure for users
  • Complies to ASTM D558, ASTM D698, ASTM D1557, AASHTO T99, AASHTO T134, AASHTO T180 standards
  • Automatic re-setting of counter after completion of blow pattern

The time and effort required to prepare specimens for compaction studies and other test methods can often be costly and time-consuming. The use of an automatic, mechanical compactor will show considerable cost benefits over hand compaction methods.

These machines automatically compact specimens eliminating the laborious hand compaction method. The height and weight of the rammer are adjustable to suit test requirements.

An automatic blow pattern ensures optimum compaction for each layer of soil in compliance with the standards. The rammer travels across the mould and the table rotates the mould in equal steps on a base that is extremely stable. The number of blows per layer can be set at the beginning of the test.

Preset blow pattern ensures an even compaction, includes solid state controls for reliability and maintenance. An automatic digital counter resets to zero on the completion of a test. The selectable rammer has a drop height of 300-450mm, a selectable rammer weight of 2.5 or 4-5kg. A preset number of blows per layer can be set by thumb wheel control. A compaction rate of approximately 26 blows per minute. Accepts BS Standard Compaction and CBR moulds; also meets the requirements of ASTM D558, ASTM D698, ASTM D1557, AASHTO T99, AASHTO T134, AASHTO T180.



Log in

You must log in to your ELE account to view prices and place your order.

Description Automatic Soils Compactor with guarding ASTM
Voltage Supply 110-120V 60Hz 1 ph
Standards  ASTM D558, ASTM D698, ASTM D1557, AASHTO T99, AASHTO T134, AASHTO T180
Rammer ASTM   Circular faced, 2 in (50.8 mm) dia, selectable to 5.5 lb (2.5 kg) or 10 lb (4.5 kg) weight
Drop ASTM  Adjustable to 12 in (305 mm) or 18 in (457 mm)
Weight (kg) 165

ASTM Compaction Mould 152mm.

24-9066

152mm inside diameter

Calibration Kit For Automatic Soil Compactor

24-9095/12

TheCalibration Kitis used to check and adjust the Mechanical Soil Compactor to ensure that it produces the same results as the manual compactor. Calibration is based on the deformation of a standard lead cylinder. The kit consists of a 1/4" extension point, a guide sleeve pedestal, a guide collar, a…

Lead Cylinders

24-9095/13

For EI24-9095/12. Pack of 100.

Modified Compaction Mould

24-9098

1/13.33 cu.ft.; 6” i.d. x 4.584” h.

Standard Compaction Mould

24-9097

1/30 cu.ft.; 4” i.d. x 4.584” h.
