Fresh and Hardened Concrete Testing, Capping of Cylinders

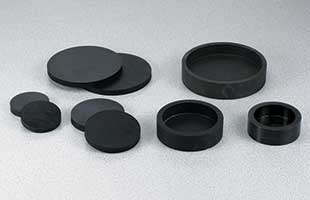

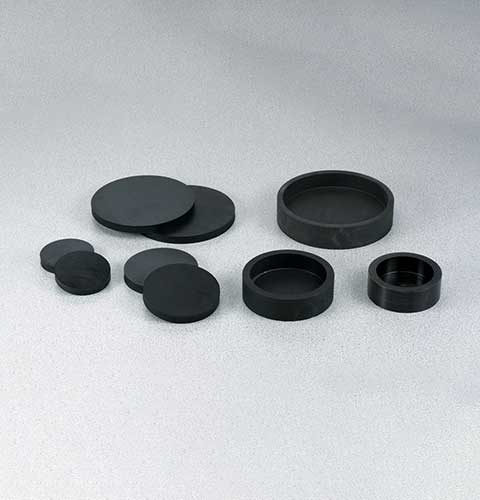

Concrete Capping Pads and Retainers
Set of 2.
Capping Pads with Retainers can only be used on compression testers with a vertical daylight opening of 14-1/2" (368 mm) between platens
4″ Compression Pads 70 Durometer
Tough elastometric material; 60 durometer pads may be used on any strength concrete; however, the longevity is lowered when used on cylinders in excess of 5,500 psi. 70 durometer pads should be used only on cylinders where concrete is 4,500 psi or higher.
Machined, high alloy steel
Pads: Net 8 oz. (227 g) ea. Retainers: 4" (102 mm) Net 4 lbs. (1.8 kg) ea. 6" (152 mm) Net 8 lbs. (3.6 kg) ea.
