Fresh and Hardened Concrete Testing, Capping of Cylinders

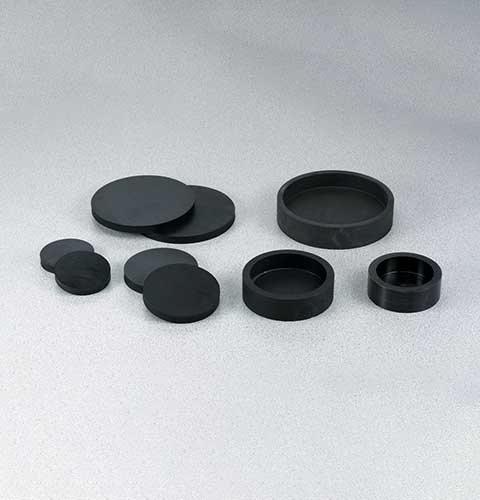

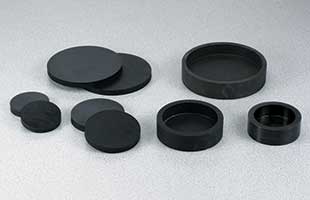

Concrete Capping Pads and Retainers
Set of 2.
Capping Pads with Retainers can only be used on compression testers with a vertical daylight opening of 14-1/2" (368 mm) between platens
|Description||6″ Compression Pads 60 Durometer|
|Capping Pads.||Tough elastometric material; 60 durometer pads may be used on any strength concrete; however, the longevity is lowered when used on cylinders in excess of 5,500 psi. 70 durometer pads should be used only on cylinders where concrete is 4,500 psi or higher.|
|Retainers.||Machined, high alloy steel|
|Weights.||Pads: Net 8 oz. (227 g) ea.
4" (102 mm) Net 4 lbs. (1.8 kg) ea.
6" (152 mm) Net 8 lbs. (3.6 kg) ea.
