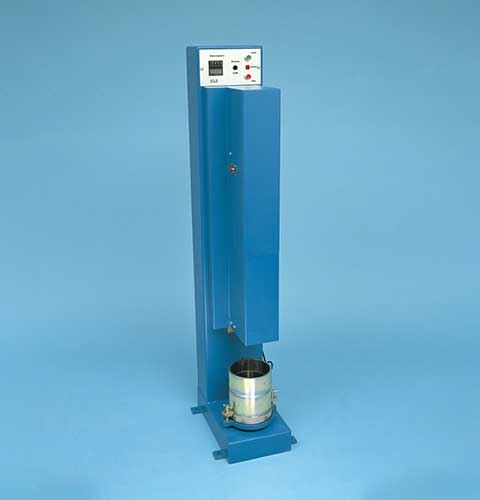

Automatic Soil Compactor ASTM 110-120V 60Hz 1Ph

« return

Automatic Soil Compactor ASTM 110-120V 60Hz 1Ph

24-9095/02

Category:

Soils

Sub Category:

Compaction and CBR, Compaction

Product Group:

Automatic Soil Compactor

Log in

You must log in to your ELE account to view prices and place your order.

Description Automatic Soil Compactor
ASTM/AASHTO Standard Yes
Voltage Supply 110 - 120 V 60 Hz
Hammer Weight, lbs 5.5/10
ASTM D558 Yes
ASTM D559 Yes
ASTM D560 Yes
ASTM D698 Yes
ASTM D1557 Yes
AASHTO T99 Yes
AASHTO T134 Yes
AASHTO T135 Yes
AASHTO T136 Yes
AASHTO T180 Yes



Specifications

Hammer Circular faced, 2.0” (50.8 mm) dia. foot; selectable to either 5.5 lb.(2.5 kg) or 10 lb. (4.5 kg) weight.
Drop Adjustable to either 12 ” (305 mm) or 18” (45 7 mm)
Controls Digital counter system, selector switch for either standard proctor test or modified proctor/CBR testing.
Dimensions 10” w. x 17” d. x 55 ” h. (25 0 x 43 0 x 1,400 mm).
Weight Net 41 9 lbs. (190 kg).

Soil Compactor includes 4" and 6" compaction molds

ASTM Compaction Mould 152mm.

24-9066

152mm inside diameter

Calibration Kit For Automatic Soil Compactor

24-9095/12

TheCalibration Kitis used to check and adjust the Mechanical Soil Compactor to ensure that it produces the same results as the manual compactor. Calibration is based on the deformation of a standard lead cylinder. The kit consists of a 1/4" extension point, a guide sleeve pedestal, a guide collar, a…

Lead Cylinders

24-9095/13

For EI24-9095/12. Pack of 100.

Modified Compaction Mould

24-9098

1/13.33 cu.ft.; 6” i.d. x 4.584” h.

Standard Compaction Mould

24-9097

1/30 cu.ft.; 4” i.d. x 4.584” h.
