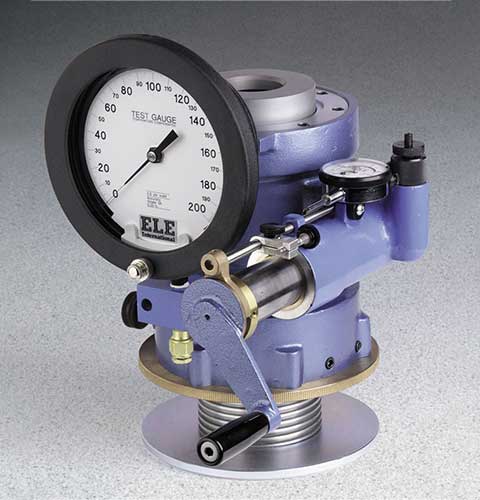

Hveem Stabilometer - ASTM Type

45-7500

Category:

Asphalt

Sub Category:

Design and Testing of Bituminous Mixtures, Hveem Stability

Product Group:

Hveem Stabilometer

ASTM Type. Includes displacement dial indicator, diaphragm tester with polyurethane dummy specimen, two followers, rubber bulb, extra O-rings, 1 qt. of oil, wrench, assembly tool and instructions.
Followers Two included; one 3.985” ± 0.005” diam.
x 5-1/2”; one 3.95” ± 0.005” diam. x 5” h.
ASTM D1560 Yes
ASTM D2844 Yes
AASHTO T190 Yes
AASHTO T246 Yes
Description Hveem Stabilometer - ASTM Type

Specifications

Specimen Size4” (101.6 mm) diam.
Gauge200 psi capacity; 1/4% accuracy.
LoadingDiaphragm/piston pump.
ShellAluminum-Magnesium; adjustable stage.
Pressure Fluid1 qt. hydraulic fluid (included).
Dial Indicator1.0” displacement x 0.001” divisions.
FollowersTwo included; one 3.985” ± 0.005” diam.
x 5-1/2”; one 3.95” ± 0.005” diam. x 5” h.
WeightNet 55 lbs. (24.9 kg).

Dial Indicator - 1.0" Range

88-4100

1.0” x 0.001” divisions.

Hveem Diaphragm Replacement Tool

45-7520

Used to replace diaphragms in Hveem stabilometer. Pre-stressing Type.

R-Value Rough Hveem Test Mold

45-7505/10

4" i.d. x 5" h

S-Value Smooth Hveem Test Mold

45-7505/12

4" i.d. x 5" h

Diaphragms

45-7500/12

Specially molded for use in Hveem Stabilometer. Shipped 14” (356 mm) long and can be used to make two replacement diaphragms.

Hveem Test Block

45-7500/10

Polyurethane dummy specimen.

Hveem Stabilometer - California Type

45-7505

California Type. Modified version with fixed stage, dual scale gauge (psi/kPa).

Hveem Stabilometer - Texas Type

45-7510

Texas Type. Modified version with gauge shut-off valve.
