Semi-Automatic Cone Penetrometer

24-0545/01

Category:

Soil Index Properties, Soils

Sub Category:

Determination of Liquid Limit, Soil Index Properties, Liquid Limit

Product Group:

Semi-Automatic Cone Penetrometer, Semi-Automatic Cone Penetrometer

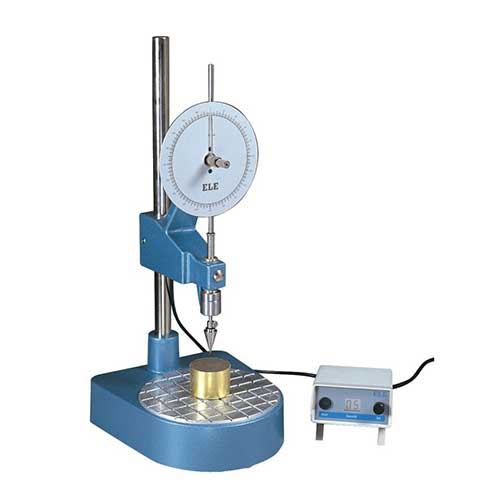

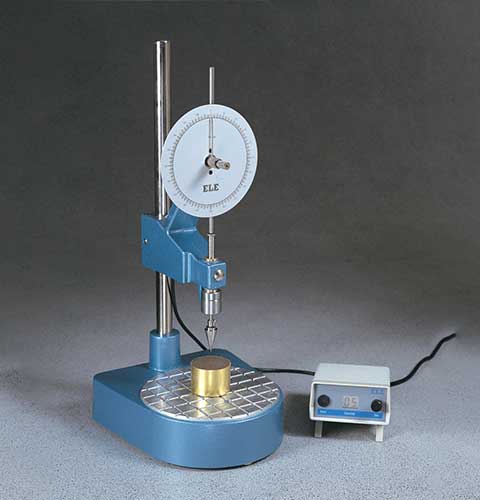

Bench mounted apparatus to determine the liquid limit of soils to BS1377. This method is applicable to a wide range of soils. The apparatus is fitted with a 150mm diameter dial indicator for direct reading of penetration. Supplied complete with 30 deg, 30mm long test cone. Manufactured from stainless steel and includes adjustable levelling feet.

Incorporates digital automatic controller, which releases the plunger head and ensures free falling of the penetration device during the test. The time set is displayed by a bright easy to read display.

Log in

You must log in to your ELE account to view prices and place your order.

BS 1377 Yes
BS 1924-2 Yes
Voltage Supply 220-240 V 50/60 Hz
Weight, kg 8.6
Description Semi-Automatic Cone Penetrometer
Cone Relase Semi-Automatic
EN 1997-2 Yes



Specifications

Dial Indicator 150 mm diameter graduated in 400 x 0.1 mm divisions. Indicator incorporates a friction/gear system.
Height Adjustable using rapid integral clamping mechanism.
Cone Release Semi-Automatic
Cone 1 x 30°, 35 mm test cone included.
Base Cast aluminum with adjustable leveling feet.
Weight Net 19 lbs. (8.64 kg).

Penetration Test Cup.

24-0548

Brass construction, 55mm dia x 40mm depth to fit BS1377

Test Gauge for Checking Condition of Cone Point.

24-0546

55 mm diameter by 40 mm deep, with the rim parallel to the flat base.

Penetration Test Cone

24-0544

Stainless steel, 35 mm long with smooth surface at an angle of 30º.

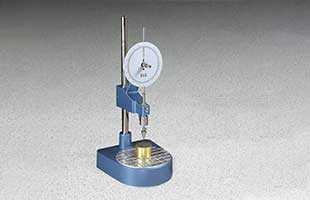

Cone Penetrometer. Complete with Stainless Steel Test Cone.

24-0540

Bench mounted apparatus to determine the liquid limit of soils BS1377. This method is applicable to a wide range of soils. The apparatus is fitted with a 150mm diameter dial indicator for direct reading of penetration. Supplied complete with 30deg, 30mm long test cone. Manufactured from stainless steel and includes…
