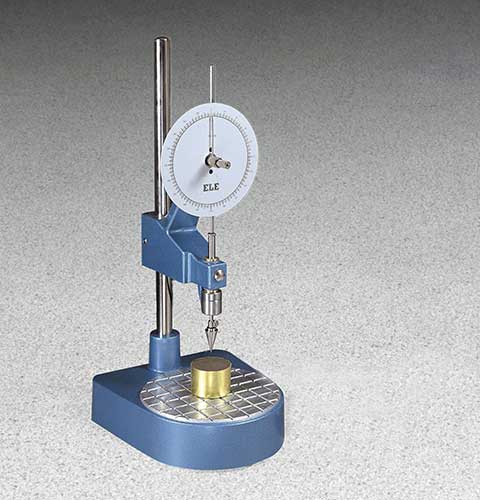

Cone Penetrometer. Complete with Stainless Steel Test Cone.

« return

Cone Penetrometer. Complete with Stainless Steel Test Cone.

24-0540

Category:

Soil Index Properties, Soils

Sub Category:

Determination of Liquid Limit, Soil Index Properties, Liquid Limit

Product Group:

Cone Penetrometer Method, Cone Penetrometer

Bench mounted apparatus to determine the liquid limit of soils BS1377. This method is applicable to a wide range of soils. The apparatus is fitted with a 150mm diameter dial indicator for direct reading of penetration. Supplied complete with 30deg, 30mm long test cone. Manufactured from stainless steel and includes adjustable levelling feet.

Log in

You must log in to your ELE account to view prices and place your order.

Description Cone Penetrometer
Cone Relase Manual
BS 1377-2 Yes
EN DD ENV 1997-2 Yes
BS 1924-2 Yes



Specification

Dial Indicator 150 mm diameter graduated in 400 x 0.1 mm divisions, indicator point incorporates friction/gear system
Height Adjustment Rapid, using integral clamping
mechanism
Cone release Manual
Cone 1 x 30º, 35 mm test cone included
Base Cast aluminium, adjustable levelling feet
Weight kg 7

Shown with optional test cup; not included, order separately

Penetration Test Cup.

24-0548

Brass construction, 55mm dia x 40mm depth to fit BS1377

Test Gauge for Checking Condition of Cone Point.

24-0546

55 mm diameter by 40 mm deep, with the rim parallel to the flat base.

Penetration Test Cone

24-0544

Stainless steel, 35 mm long with smooth surface at an angle of 30º.

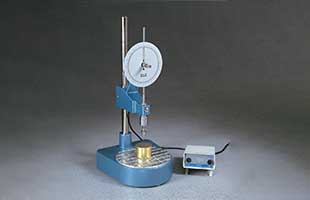

Semi-Automatic Cone Penetrometer

24-0545/01

Bench mounted apparatus to determine the liquid limit of soils to BS1377. This method is applicable to a wide range of soils. The apparatus is fitted with a 150mm diameter dial indicator for direct reading of penetration. Supplied complete with 30 deg, 30mm long test cone. Manufactured from stainless steel…
