Portable Dynamic Cone Penetrometer

29-5505

Category:

Soils

Sub Category:

Soil Index Properties, Density

Product Group:

Portable Dynamic Cone Penetrometer/Auger Set

Consists of sliding drive hammer assembly, cone penetrometer point attached to a 12” (305 mm) rod, four 30” (762 mm) “E” drill rod extensions.

Penetrometer Cone 30°.
Description Portable Dynamic Cone Penetrometer



Specifications

Auger Head 3-1/4” (82.6 mm) bucket diam. 4” (102 mm) blade diam.
Tee Handle not included
Extensions not included
Slide Hammer 15 lb. circular disc with 20” (508 mm) free fall.
Hammer Extensions Four 30” (762 mm) E Drill rods.
Penetrometer Cone 30°.
Weight Net 78 lbs. (35 .4 kg).

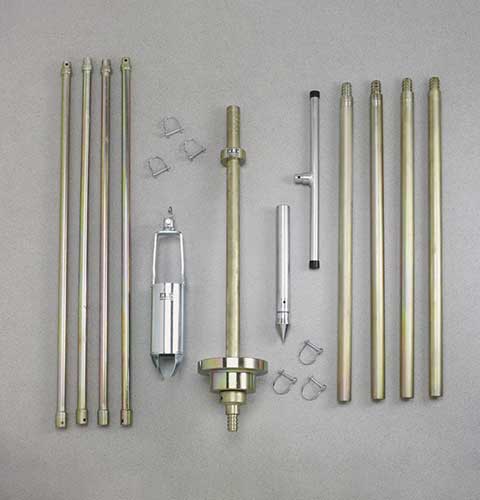

Model 29-5500 Portable Dynamic Con/Auger Set shown.

3" Drive Tube Assembly

29-5510

Consists of a drive head, 3” (76.2 mm) diam. x 10” (254 mm) long sample tube and plastic end cap.

3" Plastic End Cap

29-5510/11

For 3” Sample Tube.

3" Sample Tube

29-5510/10

(76.2 mm) diam. x 10” (254 mm) long.

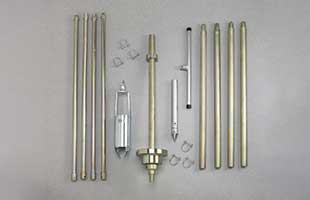

Portable Dynamic Cone Penetrometer/Auger Set

29-5500

Consists of sliding drive hammer assembly, cone penetrometer point attached to a 12” (305 mm) rod, four 30” (762 mm) “E” drill rod extensions, Tee Handle, auger head and 4 auger extensions
