Portable Dynamic Cone Penetrometer/Auger Set

29-5500

Category:

Soils

Sub Category:

Soil Index Properties, Density

Product Group:

Portable Dynamic Cone Penetrometer/Auger Set

Consists of sliding drive hammer assembly, cone penetrometer point attached to a 12” (305 mm) rod, four 30” (762 mm) “E” drill rod extensions, Tee Handle, auger head and 4 auger extensions
Penetrometer Cone 30°.
Description Portable Dynamic Cone Penetrometer/Auger Set

Specifications

Auger Head3-1/4” (82.6 mm) bucket diam. 4” (102 mm) blade diam.
Tee Handle3/4” (19 mm) diam. rod; 36” (914 mm) long.
ExtensionsFour 36” (914 mm) hand auger extensions.
Slide Hammer15 lb. circular disc with 20” (508 mm) free fall.
Hammer ExtensionsFour 30” (762 mm) E Drill rods.
Penetrometer Cone30°.
WeightNet 78 lbs. (35 .4 kg).

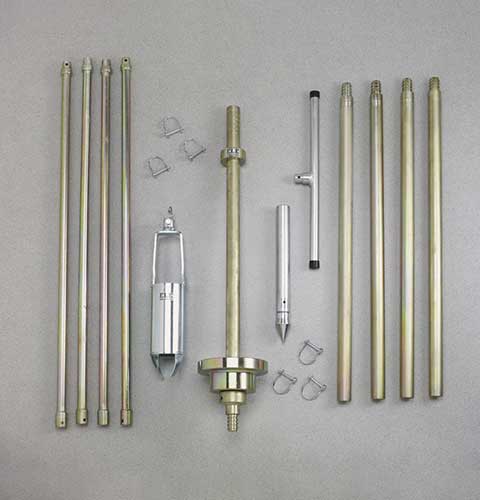

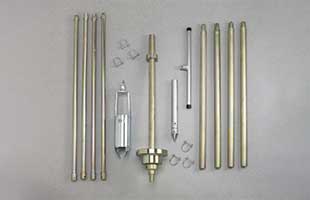

Model 29-5500 Portable Dynamic Con/Auger Set shown.

3" Drive Tube Assembly

29-5510

Consists of a drive head, 3” (76.2 mm) diam. x 10” (254 mm) long sample tube and plastic end cap.

3" Plastic End Cap

29-5510/11

For 3” Sample Tube.

3" Sample Tube

29-5510/10

(76.2 mm) diam. x 10” (254 mm) long.

Portable Dynamic Cone Penetrometer

29-5505

Consists of sliding drive hammer assembly, cone penetrometer point attached to a 12” (305 mm) rod, four 30” (762 mm) “E” drill rod extensions.
