24-9150/06
Category:
Compaction & CBR Test Equipment
Sub Category:
California Bearing Ratio
Product Group:
CBR Load Frames
• Single speed machine (BS/EN and ASTM)
• Rapid platen adjustment
• Complete with stabilising bar
• Compact, bench-mounting design
• Options for mechanical or electronic measurement

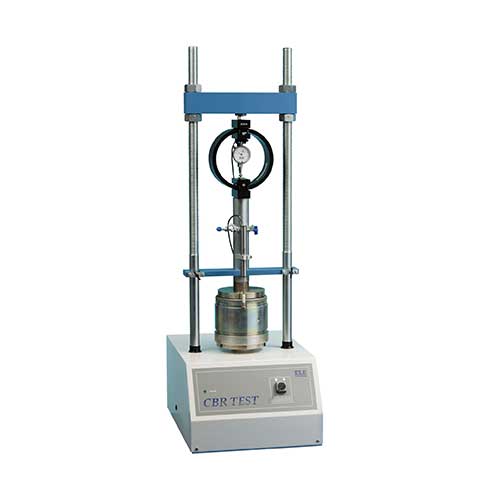

Designed for performing laboratory CBR tests to BS 1377, EN13286-47 and ASTM D1883, this bench mounting machine comprises a twin column frame incorporating a motorised drive system. Rapid adjustment of the platen is provided, which enables daylight to be taken up quickly and also close control of application of a seating load.
| Description | CBR-Test 50 Machine |
| CBR Penetration | Yes |
| Voltage Supply | 220-240 V 60Hz |
| Dimensions (l x w x h) | 550 x 400 x 1220 mm |
| Max vertical clearance | 800 mm |
| Horizontal clearance | 255 mm |
| Platen diameter | 133 mm |
| Platen travel | 105 mm |
| Weight kg | 80 |
27-1559
Maximum working capacity of 50 kN and excitation 10 V AC/DC with an output of 2.7 mV/V nominal. Aluminium alloy and Stainless Steel construction with IP65 environmental protection. Fitted with 5-pin DIN plug.
24-9228
With collar and perforated baseplate. Steel mould, corrosion resistant finish, supplied with collar and perforated base plate. Designed to accept optional cutting collars and solid baseplates.
24-9188
Dual purpose mounting bracket for CBR penetration dial gauges. Allows gauge to be fixed to penetration piston or load ring.
24-9183
As 24-9182 but with a coarse stem adjustment. This piston is particularly useful for in-situ testing.
27-1705
• Ideally suited for use with GDU for accurate displacement measurements• Models available for use in consolidation, shear, CBR and triaxial test applications• Supplied complete with mounting hardware for specified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a…
24-9186
Complete with rack extensions and chisel edge anvil.25 mm travel x 0.01 mm divisions.
24-9182
1.935 mm2 (3 in2) area foot of case hardened steel. Designed to fit all ELE load rings.
24-9184
1 in travel x 0.0005 in divisions. Complete with rack extensions and chisel edge anvil.
24-9150/06
• Single speed machine (BS/EN and ASTM)• Rapid platen adjustment• Complete with stabilising bar• Compact, bench-mounting design• Options for mechanical or electronic measurementDesigned for performing laboratory CBR tests to BS 1377, EN13286-47 and ASTM D1883, this bench mounting machine comprises a twin column frame incorporating a motorised drive system. Rapid adjustment of the…

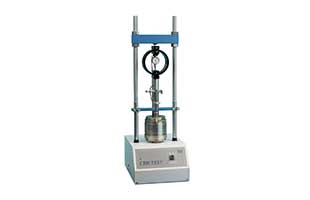

24-9150/01
