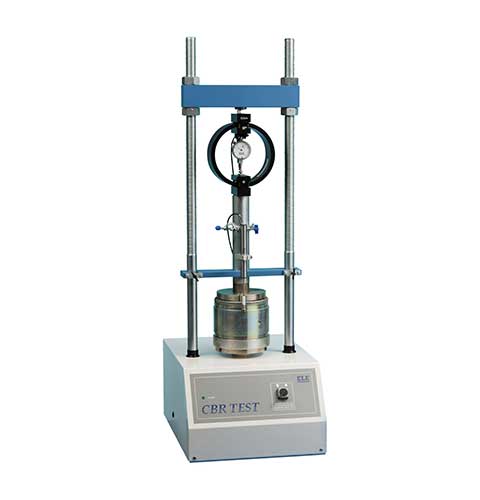

Cbr-Test 50 Machine 50kN Capacity BS and ASTM Supplied with Stabilising Bar.

« return

Cbr-Test 50 Machine 50kN Capacity BS and ASTM Supplied with Stabilising Bar.

24-9150/01

Category:

Compaction & CBR Test Equipment

Sub Category:

California Bearing Ratio

Product Group:

CBR Load Frames

• Single speed machine (BS/EN and ASTM)
• Rapid platen adjustment
• Complete with stabilising bar
• Compact, bench-mounting design
• Options for mechanical or electronic measurement

Designed for performing laboratory CBR tests to BS 1377, EN13286-47 and ASTM D1883, this bench mounting machine comprises a twin column frame incorporating a motorised drive system. Rapid adjustment of the platen is provided, which enables daylight to be taken up quickly and also close control of application of a seating load.

Log in

You must log in to your ELE account to view prices and place your order.

Description CBR-Test 50 Machine
CBR Penetration Yes
Voltage Supply 220-240 V 50 Hz
Power Supply 220 V AC, 50 Hz, 1 ph
BS 1377 Yes
BS 1924 Yes
EN 13286-47 Yes
ASTM D1883 Yes
AASHTO T193 Yes



Specification

Dimensions (l x w x h) 550 x 400 x 1220 mm
Max vertical clearance 800 mm
Horizontal clearance 255 mm
Platen diameter 133 mm
Platen travel 105 mm
Weight kg 80



50kN Clamped Boss Load Ring

78-0860

Calibrated in compression.

50kN S-type Load Cell

27-1559

Maximum working capacity of 50 kN and excitation 10 V AC/DC with an output of 2.7 mV/V nominal. Aluminium alloy and Stainless Steel construction with IP65 environmental protection. Fitted with 5-pin DIN plug.

ASTM Cbr Mould Complete with Collar & Perferated Base

24-9228

With collar and perforated baseplate. Steel mould, corrosion resistant finish, supplied with collar and perforated base plate. Designed to accept optional cutting collars and solid baseplates.

Cbr Penetration Piston (Adjustable).

24-9183

As 24-9182 but with a coarse stem adjustment. This piston is particularly useful for in-situ testing.

CBR Penetration Transducer 50mm Travel Fitted with 5 Pin Din Plug.

27-1705

• Ideally suited for use with GDU for accurate displacement measurements• Models available for use in consolidation, shear, CBR and triaxial test applications• Supplied complete with mounting hardware for specified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a…

Penetration Dial Gauge BS

24-9186

Complete with rack extensions and chisel edge anvil.25 mm travel x 0.01 mm divisions.

Penetration Piston

24-9182

1.935 mm2 (3 in2) area foot of case hardened steel. Designed to fit all ELE load rings.

Penetration/Swell Dial Gauge ASTM.

24-9184

1 in travel x 0.0005 in divisions. Complete with rack extensions and chisel edge anvil.

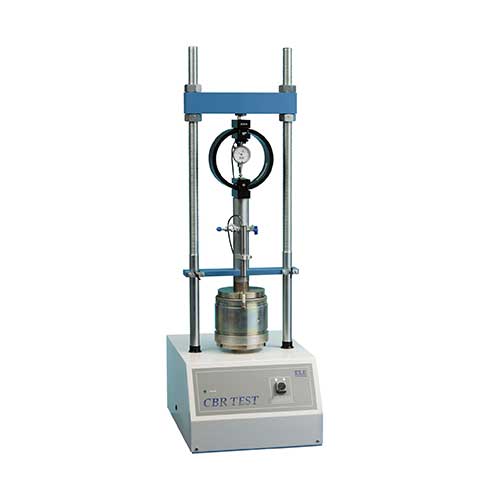

Cbr-Test 50 Machine 50kN Capacity BS and ASTM Supplied with Stabilising Bar.
