MultiPlex 50 Load Frame

25-3700/01

Category:

Compaction & CBR Test Equipment, Soil Strength (Triaxial), Data Logging, Software and Electronic Instrumentation, Design and Testing of Bituminous Mixtures

Sub Category:

California Bearing Ratio, Marshall Stability and Flow

Product Group:

Data Logging with the DSU, CBR Load Frames, Marshall Load Frames, Triaxial Load Frames

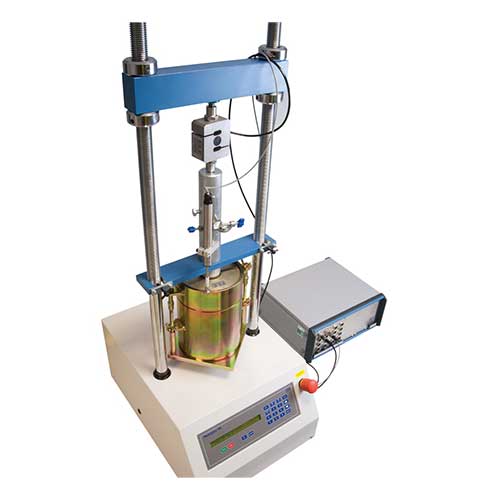

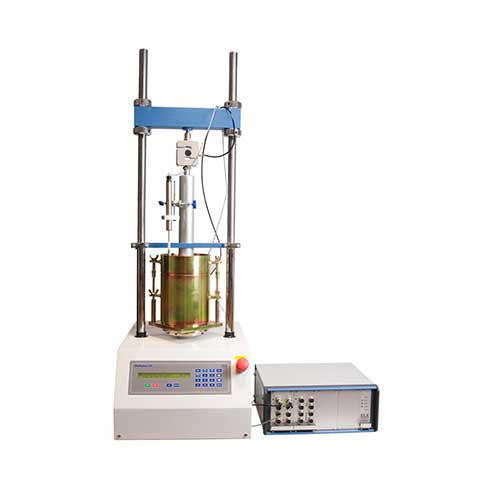

Compact bench mounting load frame designed for performing laboratory CBR, unconfined compression, Quick Undrained Triaxial and Marshall Stability Tests. Has a variable speed of 0.5 to 50.8mm per minute and features rapid approach of platen.

220-240 V,  50/60 Hz

**Not available for sale in the USA**

CBR Penetration Yes
Unconfined Compression Yes
Unconfined Compression Yes
Consolidated Undrained No
Consolidated Drained No
Marshall stability and flow Yes
Description MultiPlex 50 Load Frame
Voltage Supply 220-240V 50/60Hz
EN 12697-34 Yes
BS 598 Yes
BS 1377 Yes
BS 1924 Yes
ASTM D1883 Yes
EN 12697-23 Yes
EN 12697-24 Yes
EN 13286-47 Yes
AASHTO T193 Yes
ASTM D2850 Yes
ASTM D4767 Yes
AASHTO T296 Yes
AASHTO T297 Yes
ASTM D6927 Yes
ASTM D6927-15 Yes



Specification

Dimensions (l x w x h) 550 x 400 x 1470 mm
Max vertical clearance 800 mm
Horizontal clearance 265 mm
Platen diameter 133 mm
Platen travel 100 mm
Platen speed range 0.5 to 50.8 mm/min
Rapid approach speed 40 mm/min
Weight kg 100, (shipping 113 kg)



50kN Clamped Boss Load Ring

78-0860

Calibrated in compression.

50kN S-type Load Cell

27-1559

Maximum working capacity of 50 kN and excitation 10 V AC/DC with an output of 2.7 mV/V nominal. Aluminium alloy and Stainless Steel construction with IP65 environmental protection. Fitted with 5-pin DIN plug.

Bracket and Adaptor. Dual Purpose Mounting Bracket for CBR Penetration Gauges EL24-9184/EL24-9186

24-9188

Dual purpose mounting bracket for CBR penetration dial gauges. Allows gauge to be fixed to penetration piston or load ring.

Cbr Penetration Piston (Adjustable).

24-9183

As 24-9182 but with a coarse stem adjustment. This piston is particularly useful for in-situ testing.

CBR Penetration Transducer 50mm Travel Fitted with 5 Pin Din Plug.

27-1705

• Ideally suited for use with GDU for accurate displacement measurements• Models available for use in consolidation, shear, CBR and triaxial test applications• Supplied complete with mounting hardware for specified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a…

Penetration Dial Gauge BS

24-9186

Complete with rack extensions and chisel edge anvil.25 mm travel x 0.01 mm divisions.

Penetration Piston

24-9182

1.935 mm2 (3 in2) area foot of case hardened steel. Designed to fit all ELE load rings.

Penetration/Swell Dial Gauge ASTM.

24-9184

1 in travel x 0.0005 in divisions. Complete with rack extensions and chisel edge anvil.

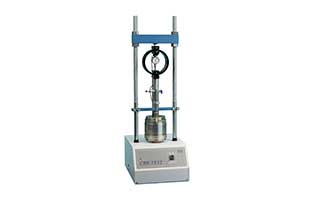

Cbr-Test 50 Machine 50kN Capacity BS and ASTM Supplied with Stabilising Bar.

24-9150/06

• Single speed machine (BS/EN and ASTM)• Rapid platen adjustment• Complete with stabilising bar• Compact, bench-mounting design• Options for mechanical or electronic measurementDesigned for performing laboratory CBR tests to BS 1377, EN13286-47 and ASTM D1883, this bench mounting machine comprises a twin column frame incorporating a motorised drive system. Rapid adjustment of the…

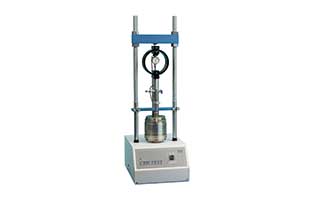

Cbr-Test 50 Machine 50kN Capacity BS and ASTM Supplied with Stabilising Bar.

24-9150/01

• Single speed machine (BS/EN and ASTM)• Rapid platen adjustment• Complete with stabilising bar• Compact, bench-mounting design• Options for mechanical or electronic measurementDesigned for performing laboratory CBR tests to BS 1377, EN13286-47 and ASTM D1883, this bench mounting machine comprises a twin column frame incorporating a motorised drive system. Rapid adjustment of the…

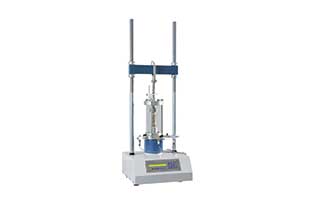

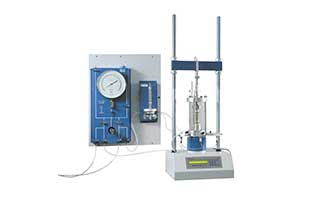

Digital Tritest 50 Load Frame
